THE SCROPIO 45

KEY SPECIFICATIONS

Max Lens Height:

Underslung: 42’8” (13 m)
Overslung: 46’7” (14.2 m)

Telescopic Range: 38’6” (11.74 m)
Telescopic Speed: 8’5” /sec (2.58 m/sec)
Max Tilt Angle: +55° -43°
Post Range: 2’9” (0.84 m)

Chassis LxW: 5’10” (1.8 m) x 5’1” (1.56 m)
Retracted Arm:

Back to Nose L: 17’ (5.19 m)
Post to Nose L: 7’10” (2.4 m)

Extended Arm:

Back to Nose L: 55’1” (16.79 m)
Post to Nose L: 45’11” (14 m)

Full Weight: 4,850 lbs (2,200 kgs)
Empty Weight: 2,935 lbs (1,331 kgs)
Arm Weight: 1,350 lbs (612 kgs)
Post/Chassis Weight: 1,585 lbs (719 kgs)

Slide To View Technical Drawing →

EQUIPMENT
DESCRIPTION

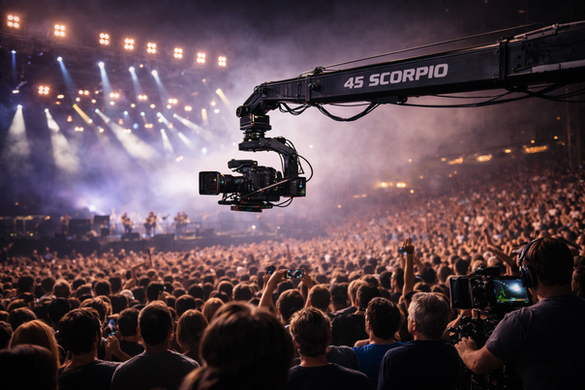

The Scorpio 45 is built to bring a director’s vision to life with smooth, precise, and silent camera movement. Designed for high-performance cinematography, it reaches nearly 47 feet while maintaining speed, stability, and seamless control. With advanced telescoping technology, programmable movement limits, and dynamic arm articulation, the Scorpio 45 delivers cinematic shots without sacrificing efficiency or flexibility.

Book the Scorpio 45

E-SCORPION

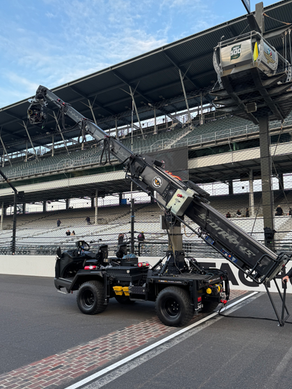

The e-Scorpion is a compact all-terrain electric vehicle designed to carry the Scorpio 45’ or the Scorpio 38’ to hard-access locations or any other location where the noise and the smoke emissions are not allowed, while saving on additional labor and costing a fraction of the time. It has been designed considering the compatibility with the Scorpio equipment and the comfort of the technician, the operator and the driver. The e-Scorpion is a safe and reliable solution for filming in remote locations that would be unreachable with a standard push chassis.

Request A Quote
